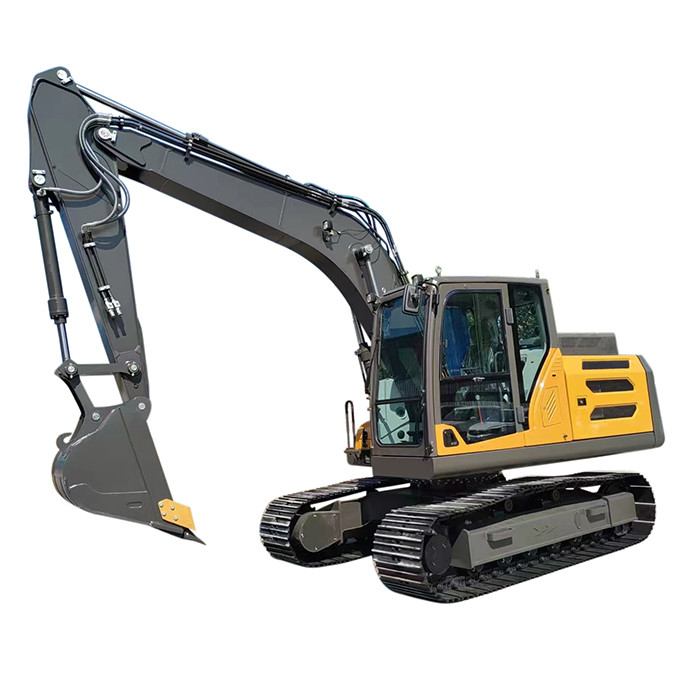

diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity
  • diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity
  • diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity
  • diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity
  • diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity
  • diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity

diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity

Place of Origin China
Certification CE
Model Number H150
Product Details
Bucket Capacity:
0.6 M³
Crawler Excavator
Operating Weight:
14500 Kg
Engine Brand:
High Light:

diesel Crawler Excavator H150


14500 kg Crawler Excavator


0.6 m3 Crawler Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Delivery Time
15 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
500 units per month
Product Description

HORNQUIP excavators of 6-15 tonnage feature reliability, durability, high efficiency, and easy maintenance. HONRQUIP excavators are equipped with two kinds of undercarriage, crawler and wheeled, meeting different demands in various job sites. Small-sized dimensions create huge productivity.
Crawler excavators also known as general-purpose excavators, they have a bucket, boom, and arm to the front of the machine. This kind comes in a variety of sizes. It’s an all-around excavator which means it can be used to dig sites, demolish structures and surfaces, carry out trenching, and lift heavy objects.
Wheel excavators are general-purpose excavators. The main difference is that instead of running on tracks, they run on wheels. The advantage of a wheeled excavator is that it can be driven from one job site to another even on a road, while crawler excavators running on tracks are usually carried on a trailer for long-distance travel. This way is much more convenient, and it saves more time and cost for the company.


BrandHORNQUIPSystem pressure32Mpa
Productcrawler excavatorDimension Length*Width*Height7635X2500X2750mm
ModelH150Cabin height2750mm
operating weight14500KGAxle base2950mm
Bucket capacity0.6m³wheel track2000mm
Swing speed0-12rpmMinimum ground clearance400mm
Gradeablity30°Tail Swing Radius2340mm
Max. bucket digging force91KNMax. digging height8540mm
Max. arm digging force55KNMax. dumping height6125mm
Engine brandISUZUMax. digging depth5095mm
Engine Model4JJ1Max. vertical digging depth4650mm
Power/revolution speed73/2000KW/rpmMax. digging radius8000mm
Fuel typedieselMin. swing radius2445mm



  • The crawler excavator is an economic type excavator, which matched YUCHAI, CUMMINS, WEICHAI or ISUZU engine with strong power and low oil consumption and environment protection.
  • Fitted famous brand main pump and valves and driving motor and slewing motor.
  • Adopted imported driving motor and swing motor.
  • Adopted hydraulic pilot servo operation system and hydraulic oil radiator, ensure the machine have high working efficiency.
  • The professional structural parts and working mechanism, ensure the machine has reliability and durability.
  • The breaking pipeline equipped improve the working performance.

  • Installed luxury full seal cabin with A/C and LCD display etc.

  • The humanized design, ensure the machine can comfortable operation and convenient maintenance.



  • Enhanced the design of the arm, boom, and bucket to increase the overall lifespan of the machine.

  • Different attachments can be replaced for various operations, achieving a wider range of practical applications.

  • 360 rotation, excellent traction, higher stability, and stronger durability.

  • Closed cab, large space high protection level suspended seat.



  • COLOR: If the regular color can not meet your needs, we can customize the color for you.
  • ENGINE: You can choose a variety of engines, you can choose Euro 3, Euro 5 and EPA engine.
  • LOGO: We can design and customize product of your own brand.
  • OTHERS: We can produce what you want according to your requirements.


6-15 tons excavators can be used on more standard projects like building construction and landscaping while still providing the advantage of increased maneuverability thanks to their smaller size.
6-15 tons excavators are very versatile machines. They are capable of performing services such as dam building, batter work, detailed large scale excavation, site cuts demolition, grading, lifting and land clearing.
Optional Attachments:


• Bucket• Hydraulic Thumb• Breaker• Root rake• Grapple
• Crusher• Multiprocessor• Auger• Shear• Compactor

diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity 0
Company Profile:

Qingdao Hornquip Machinery Co., Ltd. Was established in 2017, is a company specializing manufacture and sale of construction machine and logistics handling equipment.
What we can do for you?

1. Optional attachment: Breaker Hammer, Augers, Rakes, Quick Hitch, Rippers, Log Grabbers, Buckets of all sizes and more.
2. Color and style can be customizable.
3. Different types of engines can be matched according to your different needs.
4. Our factory can provide private custom logo services according to your needs, customize styles according to your preferences, and be your foundry.

diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity 1
diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity 2
 diesel Crawler Excavator H150 with 0.6 M3 Bucket Capacity 3
