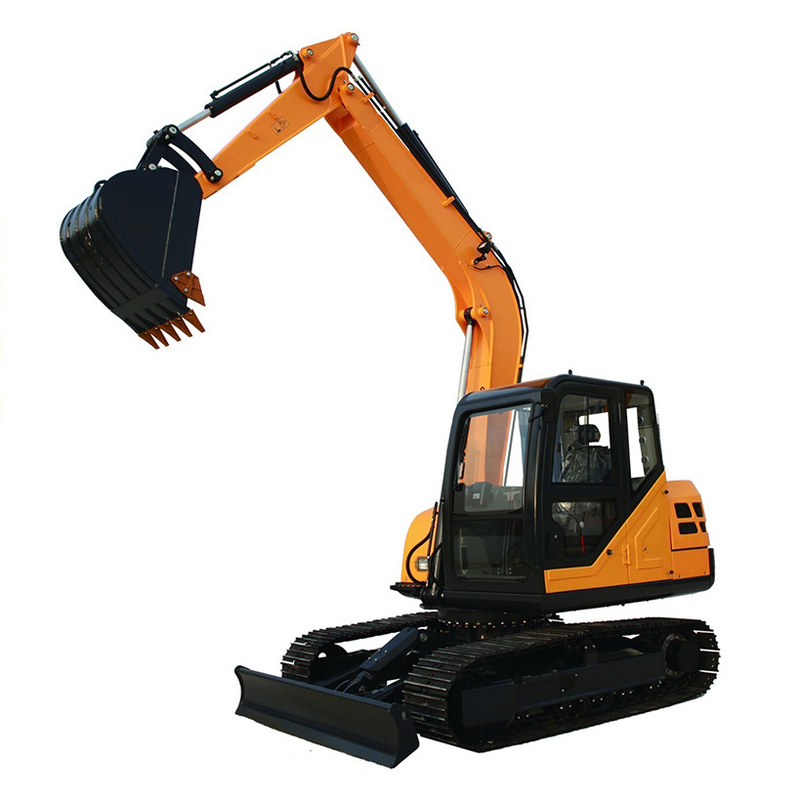

hydraulic oil radiator Crawler Excavator H90 with bucket boom and arm
  • hydraulic oil radiator Crawler Excavator H90 with bucket boom and arm
  • hydraulic oil radiator Crawler Excavator H90 with bucket boom and arm

hydraulic oil radiator Crawler Excavator H90 with bucket boom and arm

Place of Origin China
Certification CE
Model Number H90
Product Details
Bucket Capacity:
0.4 M³
Crawler Excavator
Operating Weight:
8500 Kg
Engine Brand:
CUMMINS Or Customization
High Light:

hydraulic oil radiator Crawler Excavator


0.4M3 bucket Crawler Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Delivery Time
15 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
500 units per month
Product Description

HORNQUIP excavators of 6-15 tonnage feature reliability, durability, high efficiency, and easy maintenance. HONRQUIP excavators are equipped with two kinds of undercarriage, crawler and wheeled, meeting different demands in various job sites. Small-sized dimensions create huge productivity.
Crawler excavators also known as general-purpose excavators, they have a bucket, boom, and arm to the front of the machine. This kind comes in a variety of sizes. It’s an all-around excavator which means it can be used to dig sites, demolish structures and surfaces, carry out trenching, and lift heavy objects.
Wheel excavators are general-purpose excavators. The main difference is that instead of running on tracks, they run on wheels. The advantage of a wheeled excavator is that it can be driven from one job site to another even on a road, while crawler excavators running on tracks are usually carried on a trailer for long-distance travel. This way is much more convenient, and it saves more time and cost for the company.


BrandHORNQUIPDimension Length*Width*Height6410X2278X2630mm
Productcrawler excavatorCabin height2630mm
ModelH90Axle base2209mm
operating weight8500KGwheel track1750mm
Bucket capacity0.4m³Minimum ground clearance375mm
Swing speed0-12rpmTail Swing Radius1813mm
Gradeablity35°Max. digging height7050mm
Max. bucket digging force58KNMax. dumping height5188mm
Max. arm digging force40KNMax. digging depth4015mm
Engine brandCUMMINSMax. vertical digging depth3550mm
Engine ModelQSF2.8Max. digging radius6540mm
Power/revolution speed53/2200KW/rpmMin. swing radius2140mm
Fuel typedieselMaxDozer Blade Lifting Distance370mm
System pressure27.5MpaMax.Dozer Blade Cutting Distance344mm



  • The crawler excavator is an economic type excavator, which matched CUMMINS engine with strong power and low oil consumption and environment protection.
  • Fitted famous brand main pump and valves and driving motor and slewing motor.
  • Adopted imported driving motor and swing motor.
  • Adopted hydraulic pilot servo operation system and hydraulic oil radiator, ensure the machine have high working efficiency.
  • The professional structural parts and working mechanism, ensure the machine has reliability and durability.
  • The breaking pipeline equipped improve the working performance.

  • Installed luxury full seal cabin with A/C and LCD display etc.

  • The humanized design, ensure the machine can comfortable operation and convenient maintenance.



  • Enhanced the design of the arm, boom, and bucket to increase the overall lifespan of the machine.

  • Different attachments can be replaced for various operations, achieving a wider range of practical applications.

  • 360 rotation, excellent traction, higher stability, and stronger durability.

  • Closed cab, large space high protection level suspended seat.



  • COLOR: If the regular color can not meet your needs, we can customize the color for you.
  • ENGINE: You can choose a variety of engines, you can choose Euro 3, Euro 5 and EPA engine.
  • LOGO: We can design and customize product of your own brand.
  • OTHERS: We can produce what you want according to your requirements.


6-15 tons excavators can be used on more standard projects like building construction and landscaping while still providing the advantage of increased maneuverability thanks to their smaller size.
6-15 tons excavators are very versatile machines. They are capable of performing services such as dam building, batter work, detailed large scale excavation, site cuts demolition, grading, lifting and land clearing.
Optional Attachments:


• Bucket• Hydraulic Thumb• Breaker• Root rake• Grapple
• Crusher• Multiprocessor• Auger• Shear• Compactor

hydraulic oil radiator Crawler Excavator H90 with bucket boom and arm 0
Company Profile:

Qingdao Hornquip Machinery Co., Ltd. Was established in 2017, is a company specializing manufacture and sale of construction machine and logistics handling equipment.
What we can do for you?

1. Optional attachment: Breaker Hammer, Augers, Rakes, Quick Hitch, Rippers, Log Grabbers, Buckets of all sizes and more.
2. Color and style can be customizable.
3. Different types of engines can be matched according to your different needs.
4. Our factory can provide private custom logo services according to your needs, customize styles according to your preferences, and be your foundry.

hydraulic oil radiator Crawler Excavator H90 with bucket boom and arm 1
hydraulic oil radiator Crawler Excavator H90 with bucket boom and arm 2
hydraulic oil radiator Crawler Excavator H90 with bucket boom and arm 3
