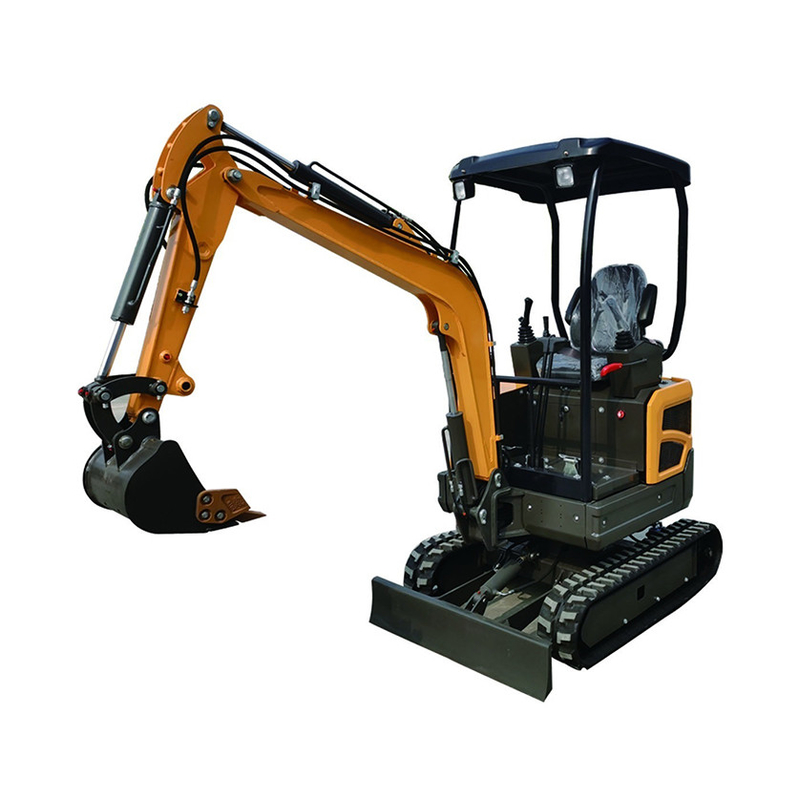

Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity
  • Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity
  • Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity
  • Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity
  • Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity
  • Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity
  • Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity
  • Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity

Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity

Place of Origin China
Brand Name HORNQUIP
Certification CE
Model Number H15
Product Details
Bucket Capacity:
0.025 M³
Condition:
NEW
Type:
Crawler Excavator
Operating Weight:
1400 Kg
Color:
Customizable
Engine Brand:
KUBOTA Or Customization
OEM/ODM:
Acceptable
High Light:

Compact Mini Crawler Excavator H15

,

kubota Mini Crawler Excavator

,

customizable Mini Crawler Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
nude
Delivery Time
15 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
500 units per month
Product Description

HORNQUIP MINI EXCAVATORS
HORNQUIP zero-tail mini excavators range from 0.8 ton to 3.5 ton. The compact dimension and better flexibility allow the machine to operate in narrow and various working conditions. Configured with a different engine, it meets the demands of emission standards in different markets. You can also select optional equipment for more operating needs. New upgraded mini excavator with better heat radiation and higher efficiency. It is more intelligent since it is controlled by ECU computer. It can be used for road breaking, excavation, vegetable greenhouse, wasteland opening on hills, feces cleaning of the farm, transformation of toilet, indoor breaking etc.



Specification:




Brand HORNQUIP Dimension Length*Width*Height 3329X990(1300)X2267mm
Product mini crawler excavator Cabin height 2290mm
Model H15 Axle base 1190mm
operating weight 1400KG wheel track 790mm
Bucket capacity 0.025m³ Minimum ground clearance 153mm
Swing speed 11-13rpm Tail Swing Radius 655mm
Gradeablity 30° Max. digging height 2955mm
Max. bucket digging force 9KN Max. dumping height 2077mm
Max. arm digging force 5.5KN Max. digging depth 2017mm
Engine brand KUBOTA Max. vertical digging depth 1610mm
Engine Model D722 Max. digging radius 3529mm
Power/revolution speed 10.2/2500KW/rpm Min. swing radius 1600mm
Fuel type diesel MaxDozer Blade Lifting Distance 236mm
System pressure 18Mpa Max.Dozer Blade Cutting Distance 229mm



Features:




The crawler excavator is a compact excavator, which matched KUBOTA engine, the boom of excavator can swing to left or right, suitable for different director digging for your working, fitted famous brand main pump and valves, fitted famous brand driving motor and slewing motor, with rubber track, with hydraulic broken pipeline system. Ensure it can work in different working environments and conditions.



Customizations:




  • COLOR: If the regular color can not meet your needs, we can customize the color for you.
  • ENGINE: You can choose a variety of engines, you can choose Euro 3, Euro 5 and EPA engine.
  • LOGO: We can design and customize product of your own brand.
  • OTHERS: We can produce what you want according to your requirements.



Applications:




  • CONSTRUCTION

          Contractors use mini excavators for various construction tasks. Mini excavators can dig out trenches and ditches. A mini excavator can move materials to and from the jobsite, and these machines are a breeze to operate.

  • LANDSCAPING

           A mini excavator is a popular tool for landscaping because of its versatility and lightweight. The small size means it can fit easily on a lawn without damaging the ground.

  • MAINTENANCE AND UTILITY WORK

          Mini excavators are also useful for some kinds of utility and maintenance work. They cost less than the standard-sized piece of machinery and can accomplish similar tasks.

  • FARMING

          On the farm, mini excavator uses include everything from spearing and moving hay bales to digging holes for fence posts.

  • MATERIALS HANDLING

          Mini excavators are great for lifts, and the attachments can accommodate odd shapes.



Optional Attachments:




• Bucket • Hydraulic Thumb • Breaker • Root rake • Grapple
• Crusher • Multiprocessor • Auger • Shear • Compactor



Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity 0



Company Profile:




Qingdao Hornquip Machinery Co., Ltd. Was established in 2017, is a company specializing manufacture and sale of construction machine and logistics handling equipment.



Details:




Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity 1

Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity 2

Compact Mini Crawler Excavator H15 with 0.025 m3 Bucket Capacity 3
