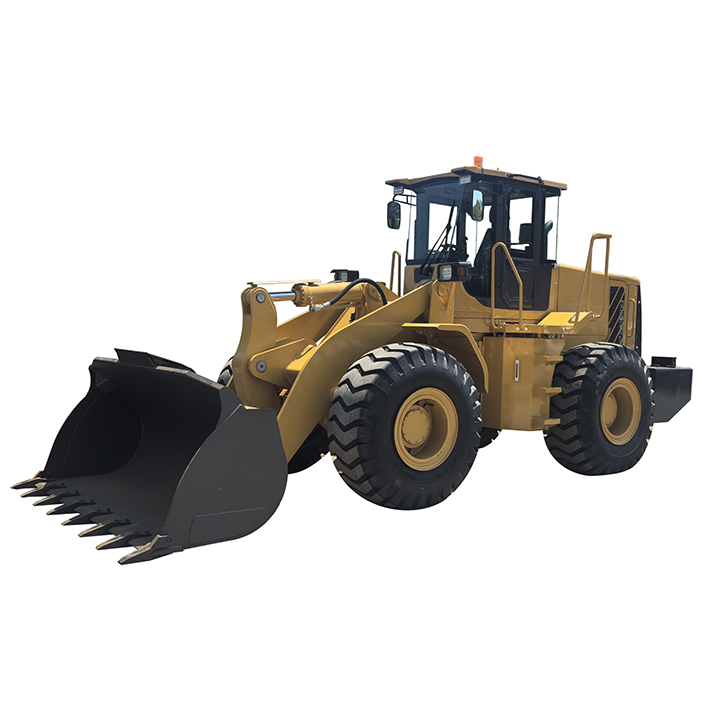

4WD Axle Mini Articulated Wheel Loader 955H 5-6 Tons

4WD Axle Mini Articulated Wheel Loader 955H 5-6 Tons

Place of Origin China
Brand Name HORNQUIP
Certification CE
Model Number 955H
Product Details
Rated Load:
5,000-6,000 Kg
Bucket Capacity:
2.6-5.5m³
Operating Weight:
16,500 Kg
Tyre:
23.5-25
Chassis:
Articulated
Highlight:

4WD mini wheel loader

,

articulated wheel loader 5-6 tons

,

955H wheel loader with warranty

Product Description

Wheel Loader 955H (5-6 tons)

Technical specification Axle
rated load 5000kg Axle type Dry axle
overall weight 16500kg hub reduction type Planetary reducer
rated bucket capacity 3m3 wheel base 2920mm
Max. tractive force 160KN wheel track 2250mm
Max. breakout force 175KN Hydraulic system
Max. grade ability 30℃ working pressure 18MPa
Max. dumping height 3065mm boom lifting time 5.6s
Max. dumping distance 11600mm total time 10.2s
overall dimension (L×W×H) 7700×2980×3430mm operating type pilot control (hydraulic joystick)
Min. turning radius 6850mm (35º) steering system articulated, full hydraulic
Engine Brake system
model WD10G220E service brake Air over hydraulic caliper disc brake
No. of cylinder-bore/stroke 6-126*130 parking brake Manual brake
rated power 162kw--2000r/min Tyre
Max. torque 980N.m type specification 23.5-25
Emission standard Stage II front tyre pressure 0.30-0.32MPa
Transmission system rear tyre pressure 0.28-0.30MPa
torque converter Single stage two phase four element Service refill capacity
Transmission Planetary powershift Fuel tank 270L
gear shift 2 forward shift, 1 reverse shift Hydraulic tank 174L
Max. speed 42km/h Engine oil 22L

Details

4WD Axle Mini Articulated Wheel Loader 955H 5-6 Tons 0

4WD Axle Mini Articulated Wheel Loader 955H 5-6 Tons 1

4WD Axle Mini Articulated Wheel Loader 955H 5-6 Tons 2
