| Place of Origin: | China |
| Brand Name: | HORNQUIP |
| Certification: | CE |
| Model Number: | T50 |
| Rated Load: | 5,000 Kg | Dumping Height: | 3-6 Meters |
|---|---|---|---|
| Power Mode: | Diesel Engine | ||

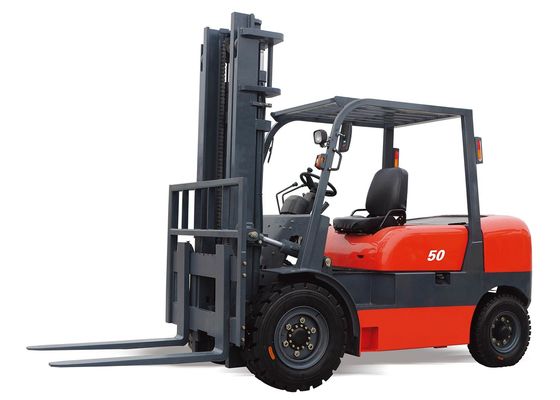

| High Light: | T50 Diesel Engine Forklift,5000kg Diesel Engine Forklift,3000mm Lift Height Diesel Forklifts |
||
| Characteristics | Fuel type | Diesel | |||
| Load capacity | kg | 5000 | |||
| Load center | mm | 600 | |||
| Lift height | mm | 3000 | |||
| Full free lift height | mm | 135 | |||
| Fork dimension | mm | 1220×150×55 | |||
| Mast tilting angle | Front/Rear | Deg. | 6/12 | ||
| Min. turning radius | mm | 3050 | |||
| Min. width of right angle stacking channel | mm | 4740 | |||
| Min. width of right angle channel | mm | 2800 | |||
| Groud clearance | mm | 160 | |||
| Overhead guard height | mm | 2350 | |||
| Front overhang | mm | 560 | |||
| Performance | Max. travel speed | Full load | km/h | 19 | |
| Max. lift speed | Full load | mm/s | 400 | ||
| Max. traction power | Full load | KN | 22 | ||
| Max. gradeability | % | 20 | |||
| Dimensions | Total length | With fork | mm | 4530 | |
| Total length | Without fork | mm | 3310 | ||
| Total width | mm | 1480 | |||
| Mast extended height | mm | 4270 | |||
| Mast lowered height | mm | 2240 | |||
| Chassis | Tyres | Front | 300-15-18PR | ||
| Rear | 7.00-12-12PR | ||||
| Wheelbase | mm | 2200 | |||
| Tread | Front/Rear | mm | 1180/1190 | ||
| Service weight | Kg | 6700 | |||
| Drive | Battery | V/Ah | (12/80)x2 | ||
| Motor | Model | Xinchai 4D35 | |||
| Rated output | kw | 81 | |||
| Cylinders | 4 | ||||
| Fuel tank capacity | L | 100 | |||
| Transmission | MT / AT | ||||
| Operating pressure | Mpa | 20 | |||
