| Place of Origin | China |
| Brand Name | HORNQUIP |
| Certification | CE |

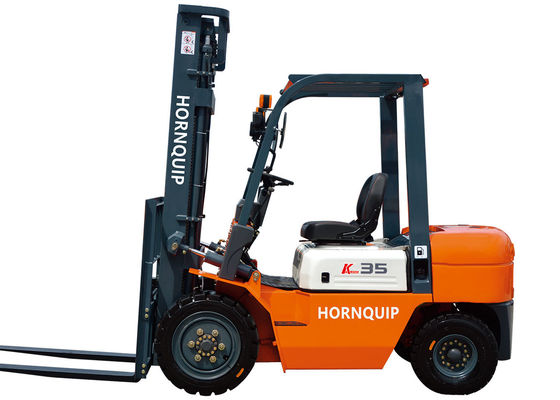

| Model Number | K35 |
| Characteristics | Fuel type | Diesel | |||
| Load capacity | kg | 3500 | |||
| Load center | mm | 500 | |||
| Lift height | mm | 3000 | |||
| Full free lift height | mm | 135 | |||
| Fork dimension | mm | 1070×125×50 | |||
| Mast tilting angle | Front/Rear | Deg. | 6/12 | ||
| Min. turning radius | mm | 2530 | |||
| Min. width of right angle stacking channel | mm | 4335 | |||
| Min. width of right angle channel | mm | 2235 | |||
| Groud clearance | mm | 120 | |||
| Overhead guard height | mm | 2120 | |||
| Front overhang | mm | 498 | |||
| Performance | Max. travel speed | Full load | km/h | 19 | |
| Max. lift speed | Full load | mm/s | 460 | ||
| Max. traction power | Full load | KN | 22 | ||
| Max. gradeability | % | 20 | |||
| Dimensions | Total length | With fork | mm | 3905 | |
| Total length | Without fork | mm | 2835 | ||
| Total width | mm | 1230 | |||
| Mast extended height | mm | 4265 | |||
| Mast lowered height | mm | 2040 | |||
| Chassis | Tyres | Front | 28x9-15-12PR | ||
| Rear | 6.50-10-10PR | ||||
| Wheelbase | mm | 1700 | |||
| Tread | Front/Rear | mm | 1000/970 | ||
| Service weight | Kg | 4500 | |||
| Drive | Battery | V/Ah | 12/100 | ||
| Motor | Model | Xinchai 490 | |||
| Rated output | kw | 40 | |||
| Cylinders | 4 | ||||
| Fuel tank capacity | L | 70 | |||
| Transmission | MT / AT | ||||
| Operating pressure | Mpa | 18.5 | |||
