Feature | UOM | ||

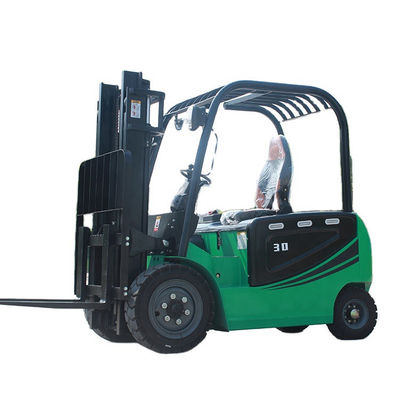

Model | FB30 | ||
driving mode | seated | ||
rated capacity | Q | kg | 3000 |
load center distance | C | mm | 500 |
power mode | lead-acid battery | ||
wheelbase | L1 | mm | 1780 |
Tyre | |||
tyre type | pneumatic tyre | ||
wheels number(front/rear) | 2/2 | ||
front track | W3 | mm | 1002 |
rear track | W2 | mm | 994 |
tyre(front) | 28x9-15 | ||
tyre(rear) | 18x7-8 | ||
Size | |||
front overhang | L2 | mm | 467 |
tilt of the mast,front/rear | α/β | ° | 5/10 |
height,mast retraction | H1 | mm | 2057 |
free lift height | H3 | mm | 120 |
overall maximum lift height | H | mm | 3000 |
height,mast extended | H2 | mm | 4200 |
overhead guard height | H4 | mm | 2200 |
lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | 1100/244 |
fork size(LxWxT) | T*W*L4 | mm | 1070*122*45 |
truck body length(fork excluded) | L' | mm | 2547 |
truck body width | W1 | mm | 1225 |
turning radius | R | mm | 2310 |
groubd clearance under mast | H5 | mm | 82 |
Ground clearance at center of wheelbase(laden) | H6 | mm | 145 |
width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm) | Ast | mm | 4100 |
width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm) | Ast | mm | 4300 |
Performance | |||
travel speed,laden/unladen | km/h | 10/10 | |
lifting speed,laden/unladen | mm/s | 200/300 | |
lowering speed,laden/unladen | mm/s | 450 | |
maximum negoniable gradient,laden/unladen | % | 12/15 | |
Weight | |||
service mass(with battery) | kg | 4300 | |
battery voltage /nominal capacity | V/Ah | 72V/230 | |
battery weight | kg | 430 | |
Electrical configuration | |||
drive motor power-60 minutes | kW | 11(AC) | |
lift motor power-15 minutes | kW | 12(AC) | |
drive motor controlling mode | MOSFET/AC | ||
lifting motor controlling mode | MOSFET/AC | ||
service brake/parking brake | Hydraulic/Mechanial |
