| Place of Origin: | China |
| Brand Name: | HORNQUIP |
| Certification: | CE |
| Model Number: | 650B |
| Rated Load: | 5,000-6,000 Kg | Bucket Capacity: | 2.6-5.5m³ |
|---|---|---|---|
| Operating Weight: | 16,500 Kg | Tyre: | 23.5-25 |
| Engine: | EUR II, EUR III, EUR IV, EUR V | ||

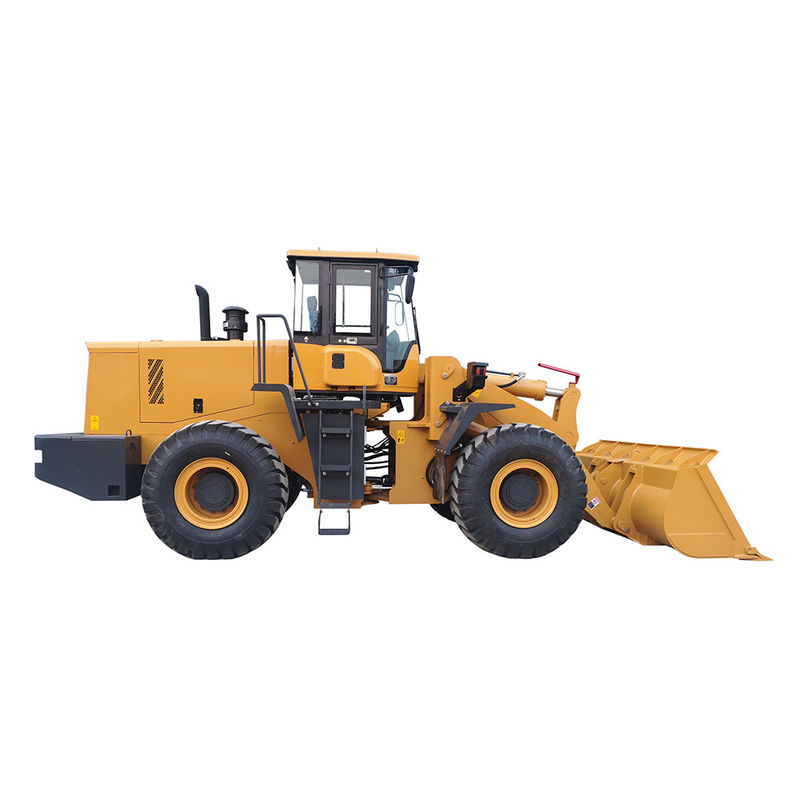

| High Light: | Hydraulic Converter Wheel Loader,Wheel Loader 650B,162KW Articulated Wheel Loader |
||
| Technical specification | |
| Bucket capacity | 3 m³ |
| Rated load | 5000-6000 kg |
| Overall dimension | 8100*3060*3450mm |
| Operating weight | 16500 kg |
| Max. breakout force | 163 K.N |
| Max. dumping height | 3100 mm |
| Max. dumping distance | 1000 mm |
| Engine | |
| Engine manufacturer | Weichai |
| Model | Styer |
| Rated power | 162 KW |
| Emission standard | EUR II (EUR III & EUR V available) |
| Steering system | |
| Type | Full-hydraulic, articulated |
| Steering angle | 34° |
| Transmission system | |
| Torque converter type | Single phase, hydraulic converter |
| Gear shift | 4 forward, 4 reverse |
| Max. speed | 38 km/h |
| Axle | 4WD, heavy hub reduction |
| Tyre size | 23.5-25 |
| Brake system | |
| Service brake | Gas cap oil disc brake on 4 wheels |
| Parking brake | Hand operated caliper disc |
