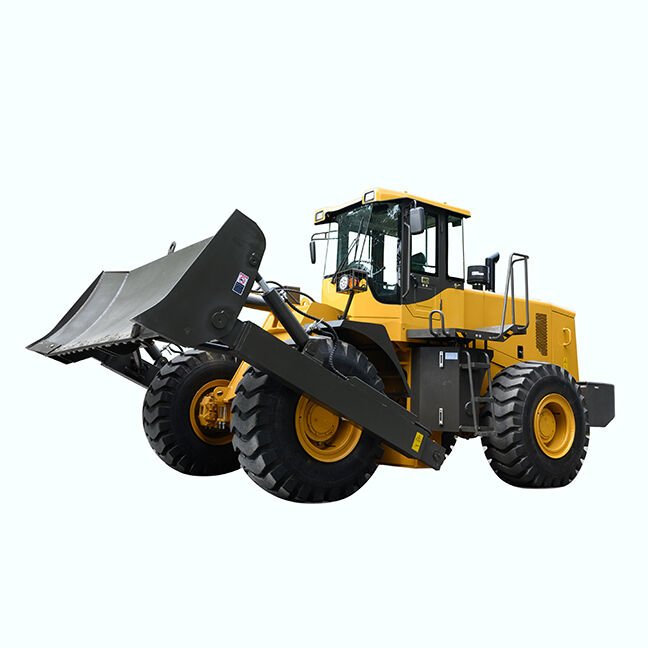

Wheel Bulldozer DL240

Name: Wheel Bulldozer DL240
Brand: Qingdao Hornquip Machinery Co., Ltd
SKU: DL240
Price: 550.00 USD
Availability: InStock

Product Details

Other Name:

Bulldozer Wheel Dozer

Engine:

Wechai WD10G240E22

Tyre:

23.5-25

Operating Weight:

17000kg

Rated Power:

178kw

Highlight:

Wheel Bulldozer DL240 model

Construction Bulldozer with warranty

Product Description

performance	Overall Dimension	7100×3600×3450mm
	Wheel base	3300mm
	Wheel track	2240mm
	Height of shovel blade	1000mm
	Operating weight	17000kg
	Max. lift height of dozer blade	1060mm
	Max. depth of dozer blade	400mm
	Width of shovel blade	3600mm
	Gradeability	25°
engine	Model of engine	WECHAI WD10G240E22 (EURO 2)
	Pattern	Turbo, in-line, water-cooled, 4-stroke, direct injection
	Rated power	178KW
	Rated rotary speed	2000r/min
	Max. torque	860N.m
	Min. fuel consuming rate	126g/kw.h
	Total displacement	9.7L
Transmission system	Model of torque device	ZL60D-II
	Pattern	Powershift, countershaft
	Number of gears	4 forward,4 reverse
	Max. travel speed	40km/h
	Axle	Feicheng/Laiyang
	Main reducer type	Spiral bevel gear first class reduction
	Final reducer	Single stage planetary
	Tire size	23.5-25
Steering system	Pattern	Articulated, full hydraulic
	Min. turning radius(outside of bucket)	7268mm
	Max. turning angle	35°±1
Working hydraulic system	Working pump	CBGJ2100/1010/2063-0010
	Displacement	250L/min
	System working pressure	20.3MPa
	Distribution device model	32
	Pilot valve model	DJS
brake	Brake system	Gas cap oil caliper disc on 4 wheels
brake	Parking brake	Hand operated caliper disc
