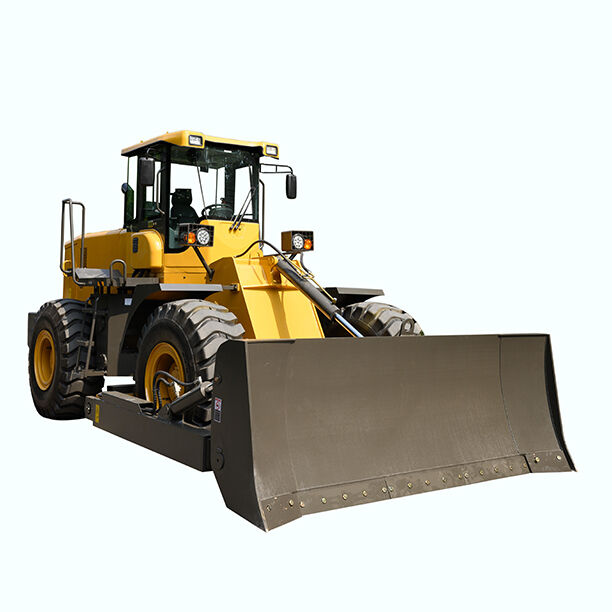

Wheel Bulldozer DL220
  • Wheel Bulldozer DL220
  • Wheel Bulldozer DL220
  • Wheel Bulldozer DL220

Wheel Bulldozer DL220

Place of Origin CHINA
Model Number DL220
Product Details
Other Name:
Wechai WD10G220E22
Operating Weight:
Product Description
performance Overall Dimension 7100×3600×3450mm
Wheel base 3200mm
Wheel track 2240mm
Height of shovel blade 1000mm
Operating weight 15500kg
Max. lift height of dozer blade 1060
Max. depth of dozer blade 400
Width of shovel blade 3600mm
Gradeability 25°
engine Model of engine Weichai STEYR WD10G220E22 (Eur II)
Pattern Turbo, in-line, water-cooled, 4-stroke, direct injection
Rated power 162KW
Rated rotary speed 2100r/min
Max. torque 860N.m
Min. fuel consuming rate 126g/kw.h
Total displacement 9.726L
Transmission system Model of torque device HANGZHOU ADVANCE
Pattern 3-element,single stage
Transmission type Full-powershift, planetary type
Number of gear 2 forward,1 reverse2
Max. travel speed 40km/h
Axle 50 series
Main reducer type Spiral bevel gear first class reduction
Final reducer Single stage planetary
Tire size 23.5-25
Steering system Pattern Articulated, full hydraulic
Min. turning radius(outside of blade) 7268mm
Max. turning angle 35°±1
Working hydraulic system Working pump CBGJ2080/1010
Displacement 250L/min
System working pressure 20.3MPa
Distribution device model DF32
Pilot valve model DJS
brake Brake system Gas cap oil caliper disc on 4 wheel
Parking brake Hand operated caliper disc
