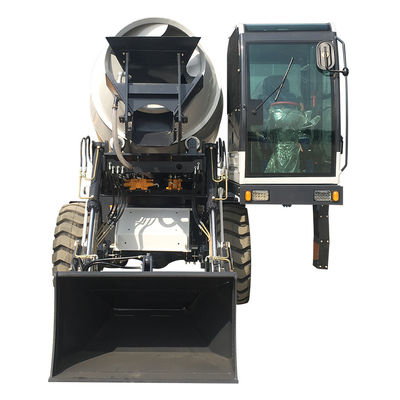

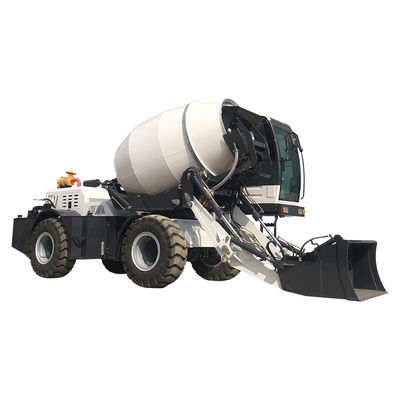

Self Loading Concrete Mixer Truck H3000A (3m³)
  • Self Loading Concrete Mixer Truck H3000A (3m³)
  • Self Loading Concrete Mixer Truck H3000A (3m³)
  • Self Loading Concrete Mixer Truck H3000A (3m³)
  • Self Loading Concrete Mixer Truck H3000A (3m³)
  • Self Loading Concrete Mixer Truck H3000A (3m³)

Self Loading Concrete Mixer Truck H3000A (3m³)

Place of Origin China
Brand Name HORNQUIP
Model Number H3000A
Product Details
Max. Output:
3m³/drum
Chassis:
Articulated Chassis
Loading Type:
Front Loading
Feature:
Cab & Drum Synchronous Rotation 290°
Product Description
Operating weight 8000 kg
Drum geometric volume 5.3m³
Max. output 3.6m³/drum
Overall dimension 7420*3050*3410 mm
Bucket capacity 0.5m3
engine Yuchai YCD4J22T-115 (Yuchai 4105turbo)
Rated power 4-cylinder diesel 85kw@2600rpm
Rotating speed 15-20 r/minute
Max. speed 45km/h
Discharge hole height 2.2-1.6 meters (Adjustable)
Rotation angle of drum 270°
Steering system Hydraulic, articulated
Transmission 280
Axle 4X4, heavy big hub reduction
Tyre GRT981 (front two tyre),rail vacuum tyre
Brake system Caliper disc brake on 4 wheels
Water tank 500 L
Hydraulic oil tank 125 L
Fuel tank 125 L
Package 1 unit in 1*40HQ Container
