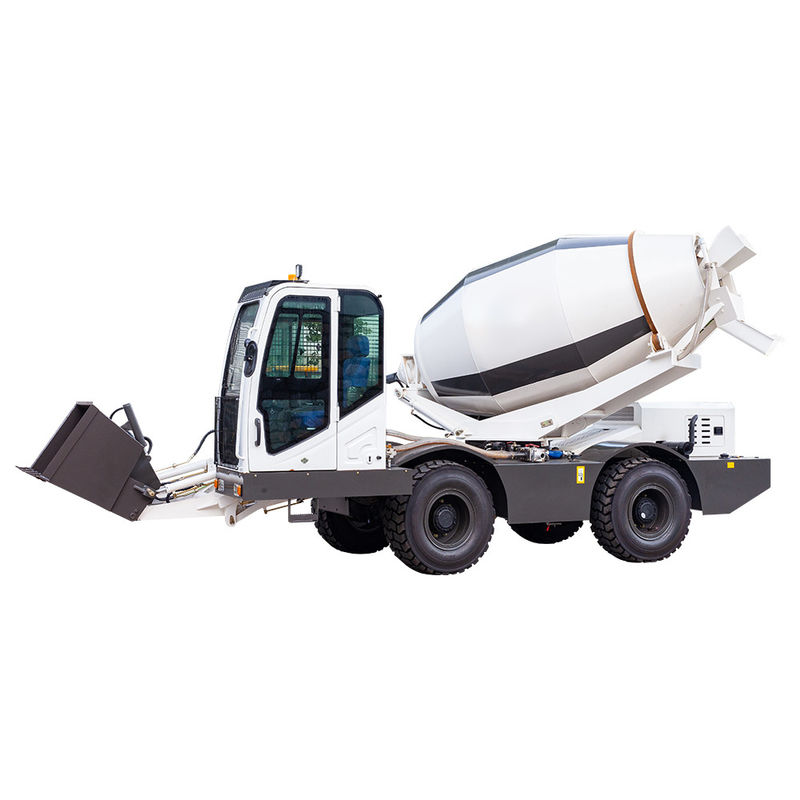

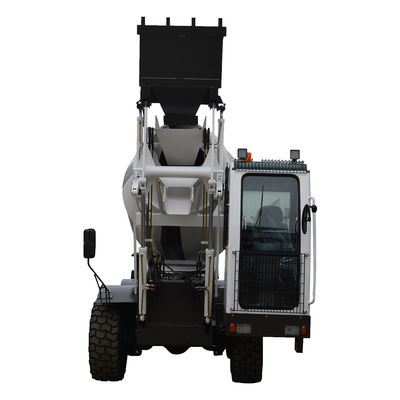

Self Loading Concrete Mixer Truck H4000 (4m³)

Self Loading Concrete Mixer Truck H4000 (4m³)

  • Self Loading Concrete Mixer Truck H4000 (4m³)
  • Self Loading Concrete Mixer Truck H4000 (4m³)
  • Self Loading Concrete Mixer Truck H4000 (4m³)
  • Self Loading Concrete Mixer Truck H4000 (4m³)
  • Self Loading Concrete Mixer Truck H4000 (4m³)
  • Self Loading Concrete Mixer Truck H4000 (4m³)
Self Loading Concrete Mixer Truck H4000 (4m³)
Product Details:
Place of Origin: China
Brand Name: HORNQUIP
Model Number: H4000
Contact Now
Detailed Product Description
Max. Output: 4m³/drum Chassis: Integrated Chassis
Loading Type: Front Loading Feature: Driving Stability

Operating weight 7500 kg
Drum geometric volume 5.5m³
Max. output 4m³/drum
Overall dimension 7520*2550*3350 mm
Bucket capacity 0.5m3
engine Yuchai YCD4J22T-115 (Yuchai 4105turbo)
Rated power 4-cylinder diesel 85kw@2600rpm
Rotating speed 15-20 r/minute
Max. speed 45km/h
Discharge hole height 2.2-1.6 meters (Adjustable)
Rotation angle of drum 270°
Steering system Hydraulic, wheel steering
Transmission 280
Axle 4X4, 20 tons steering alxe
Tyre 16/70R20 rail tyre
Brake system Drum brake on 4 wheels
Water tank 500 L
Hydraulic oil tank 125 L
Fuel tank 125 L
Package 1 unit in 1*40HQ Container
