Diesel Fuel mining Wheel Excavator H9150
  • Diesel Fuel mining Wheel Excavator H9150
  • Diesel Fuel mining Wheel Excavator H9150
  • Diesel Fuel mining Wheel Excavator H9150
  • Diesel Fuel mining Wheel Excavator H9150
  • Diesel Fuel mining Wheel Excavator H9150
  • Diesel Fuel mining Wheel Excavator H9150
  • Diesel Fuel mining Wheel Excavator H9150

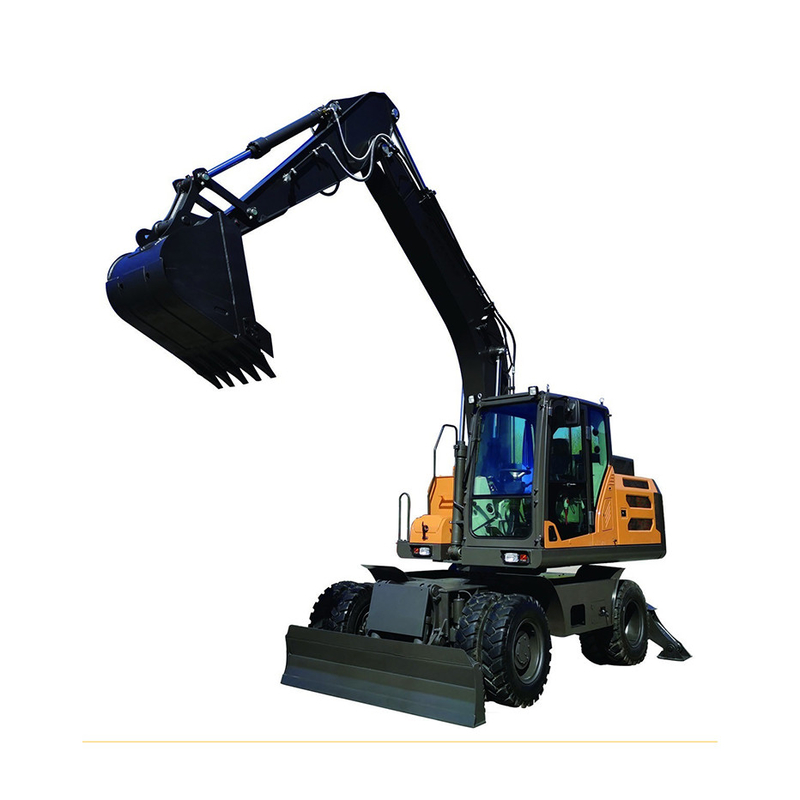

Diesel Fuel mining Wheel Excavator H9150

Place of Origin China
Certification CE
Model Number H9150
Product Details
Bucket Capacity:
0.6 M³
Wheel Excavator
Operating Weight:
14500 Kg
Engine Brand:
WEICHAI, CUMMINS Or Customization
High Light:

Diesel Fuel Wheel Excavator


customized Wheel Excavator


14500 kg Wheel Excavator

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Delivery Time
15 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
500 units per month
Product Description

HORNQUIP excavators feature reliability, durability, high efficiency, and easy maintenance. HONRQUIP excavators are equipped with two kinds of undercarriage, crawler and wheeled, meeting different demands in various job sites. Small-sized dimensions create huge productivity.
Wheel excavators are general-purpose excavators. The main difference is that instead of running on tracks, they run on wheels. The advantage of a wheeled excavator is that it can be driven from one job site to another even on a road, while crawler excavators running on tracks are usually carried on a trailer for long-distance travel. This way is much more convenient, and it saves more time and cost for the company.
Crawler excavators also known as general-purpose excavators, they have a bucket, boom, and arm to the front of the machine. This kind comes in a variety of sizes. It’s an all-around excavator which means it can be used to dig sites, demolish structures and surfaces, carry out trenching, and lift heavy objects.


Product wheel excavator Dimension Length*Width*Height 6770X2550X3370mm
Model H9150 Cabin height 3100mm
operating weight 14500KG Axle base 2600mm
Bucket capacity 0.6m³ wheel track 1944mm
Swing speed 0-12rpm Minimum ground clearance 350mm
Gradeablity 25° Tail Swing Radius 2420mm
Max. bucket digging force 91KN Max. digging height 8930mm
Max. arm digging force 55KN Max. dumping height 6300mm
Engine brand WEICHAI Max. digging depth 5180mm
Engine Model WP4.6N Max. vertical digging depth 4745mm
Power/revolution speed 110/2000KW/rpm Max. digging radius 8200mm
Fuel type diesel Min. swing radius 2650mm
Tire 9.00-20 MaxDozer Blade Lifting Distance 400mm
System pressure 32Mpa Max.Dozer Blade Cutting Distance 100mm



  • The wheel excavator is an economic excavator, which matched WEICHAI engine with strong power and low oil consumption and environment protection.
  • Fitted famous brand main pump and valves and driving motor and slewing motor.
  • Adopted imported driving motor and swing motor.
  • Adopted hydraulic pilot servo operation system and hydraulic oil radiator, ensure the machine have high working efficiency.
  • The professional structural parts and working mechanism, ensure the machine has reliability and durability.
  • The breaking pipeline equipped improve the working performance.

  • Installed luxury full seal cabin with A/C and LCD display etc.

  • The humanized design, ensure the machine can comfortable operation and convenient maintenance.



  • Enhanced the design of the arm, boom, and bucket to increase the overall lifespan of the machine.

  • Different attachments can be replaced for various operations, achieving a wider range of practical applications.

  • 360 rotation, excellent traction, higher stability, and stronger durability.

  • Closed cab, large space high protection level suspended seat.



  • COLOR: If the regular color can not meet your needs, we can customize the color for you.
  • ENGINE: You can choose a variety of engines, you can choose Euro 3, Euro 5 and EPA engine.
  • LOGO: We can design and customize product of your own brand.
  • OTHERS: We can produce what you want according to your requirements.


6-15 tons excavators can be used on more standard projects like building construction and landscaping while still providing the advantage of increased maneuverability thanks to their smaller size.
6-15 tons excavators are very versatile machines. They are capable of performing services such as dam building, batter work, detailed large scale excavation, site cuts demolition, grading, lifting and land clearing.
18-23 tons excavators are often used on commercial construction sites, mining and large demolition projects such as shopping malls and large-scale buildings.
60 tons crawler excavator H8600 is mainly used for mining construction. It features High-efficiency / Long-period / Reliable-quality and so on.
Optional Attachments:


• Bucket • Hydraulic Thumb • Breaker • Root rake • Grapple
• Crusher • Multiprocessor • Auger • Shear • Compactor

Diesel Fuel mining Wheel Excavator H9150 0
Company Profile:

Qingdao Hornquip Machinery Co., Ltd. Was established in 2017, is a company specializing manufacture and sale of construction machine and logistics handling equipment.
What we can do for you?

1. Optional attachment: Breaker Hammer, Augers, Rakes, Quick Hitch, Rippers, Log Grabbers, Buckets of all sizes and more.
2. Color and style can be customizable.
3. Different types of engines can be matched according to your different needs.
4. Our factory can provide private custom logo services according to your needs, customize styles according to your preferences, and be your foundry.

Diesel Fuel mining Wheel Excavator H9150 1
Diesel Fuel mining Wheel Excavator H9150 2
 Diesel Fuel mining Wheel Excavator H9150 3
 Diesel Fuel mining Wheel Excavator H9150 4
