10L Diesel Tank Mini Excavator H12 0.025cbm 2km/H Travel Speed
  • 10L Diesel Tank Mini Excavator H12 0.025cbm 2km/H Travel Speed
  • 10L Diesel Tank Mini Excavator H12 0.025cbm 2km/H Travel Speed
  • 10L Diesel Tank Mini Excavator H12 0.025cbm 2km/H Travel Speed
  • 10L Diesel Tank Mini Excavator H12 0.025cbm 2km/H Travel Speed
  • 10L Diesel Tank Mini Excavator H12 0.025cbm 2km/H Travel Speed
  • 10L Diesel Tank Mini Excavator H12 0.025cbm 2km/H Travel Speed

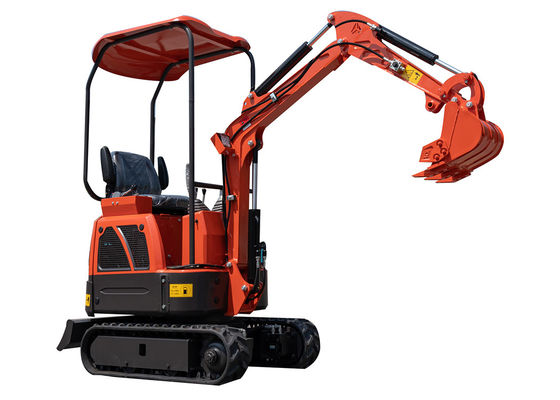

10L Diesel Tank Mini Excavator H12 0.025cbm 2km/H Travel Speed

Place of Origin China
Brand Name HORNQUIP
Certification CE
Model Number H12
Product Details
Operating Weight:
1200 Kg
Emisssion Standard:
EUR V
Moving Type:
Crawler
High Light:

10L Diesel Tank Mini Excavator

,

Mini Excavator H12

,

0.025cbm Mini Excavator

Product Description
Model H12
Operating Weight 1200kg
Digging bucket capacity 0.025cbm
Bucket width 380mm
Engine Yanmar 3TNV74F EURO 5
Rated power 11.2kw/2200/r/min
Displacement 0.854L
Number of cylinder three cylinder, water cool
Displacement 6.8ml/r
Hydraulic system pressure 16 Mpa
Swing motor EATON
Traveling motor EATON
Travel speed 2km/h
MAIN DEMENSIONS
Overall dimension( LxWxH) 2770x896x1490 mm
Total length of track 1230mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 896 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
Diesel tank capacity 10 L
Hydraulic oil tank capacity 16L
OPERATING RANGE
Max. Digging depth 1650 mm
Max. Digging height 2610 mm
Max. Dumping height 1850 mm
Max. Digging radius on ground 2850 mm
Min. Rotation radius 1330 mm
Max. Upgrade height of bulldozer blade 345 mm
Max. Digging depth of bulldozer blade 255 mm
