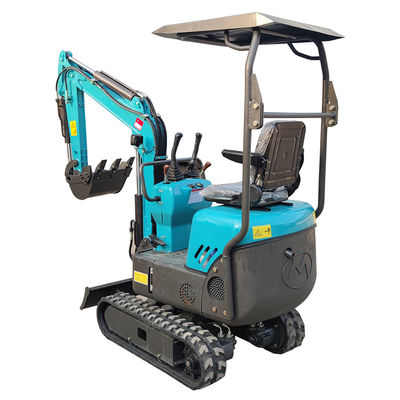

Crawler Type Mini Excavator Machine H10 18 L/Min 17Mpa
  • Crawler Type Mini Excavator Machine H10 18 L/Min 17Mpa
  • Crawler Type Mini Excavator Machine H10 18 L/Min 17Mpa
  • Crawler Type Mini Excavator Machine H10 18 L/Min 17Mpa
  • Crawler Type Mini Excavator Machine H10 18 L/Min 17Mpa
  • Crawler Type Mini Excavator Machine H10 18 L/Min 17Mpa
  • Crawler Type Mini Excavator Machine H10 18 L/Min 17Mpa

Crawler Type Mini Excavator Machine H10 18 L/Min 17Mpa

Place of Origin China
Brand Name HORNQUIP
Model Number H10
Product Details
Operating Weight:
910 Kg
Emisssion Standard:
EUR V
Moving Type:
Crawler
High Light:

Mini Excavator Machine H10

,

Mini Excavator Machine 18L/Min

,

17Mpa Mini Crawler Excavator

Product Description
Operating weight 910 kg
Bucket capacity 0.025 m³
Engine model KOOP KD192F-1
Rated power 7.0/3000 kw/r/min
Hydraulic pump model  China Brand
Max.flow  18 L/min
Working pressure 17Mpa
Control valve model China Brand
Swing motor model RMR-315
Travel motor model R6K-310
Fuel tank capacity 7L
Hydraulic oil tank capacity 17L
Travel speed  1.9km/h
Swing speed  13r/min
Max. climbing degree 58%
Arm digging force 10.2KN
Bucket digging force  14.8KN
Average grounding pressure 28Kpa
A-Overall length 2949mm
B-Overall width  930mm
C-Overall height (to top of boom) 1095mm
D-Overall height (to top of cab) 2219mm
E-Counterweight ground clearance 362mm
F-Min. ground clearance 134mm
G-Tail swing radius 834mm
H-Track Ground Length 900mm
J-Track length 1233mm
K-Track gauge 740mm
L-Track width 920mm
M-Track shoe width 180mm
N-Turntable width 917mm
O-Max. digging height 2637mm
P-Max. dumping height 1784mm
Q-Max. digging depth 1681mm
R-Max. vertical wall digging depth 1569mm
T-Max. digging reach 3084mm
U-Max. digging reach at ground level 3003mm
V-Min. swing radius 1390mm
X-Distance between center of rotation and tail length 833mm
Z-Height of counterweight 530mm
A1-Ground length (in transportation) 2348mm
Arm length 798mm
Boom length 1480mm
